5-meter Toroidal Grating Monochromator (5m-TGM) Beamline



The beamline is equipped with 3 interchangeable toroidal gratings which cover the photon energies

  • 25 eV – 60 eV (300 gr/mm)
  • 50 eV – 120 eV (600 gr/mm
  • 100 eV -240 eV (1200 gr/mm)

The resolving power at the Boron K edge (~200 eV) is about 800.



Reference:  Journal of Physics: Conference Series 493 (2014) 012024.
Research/Technical Contact: Orhan Kizilkaya

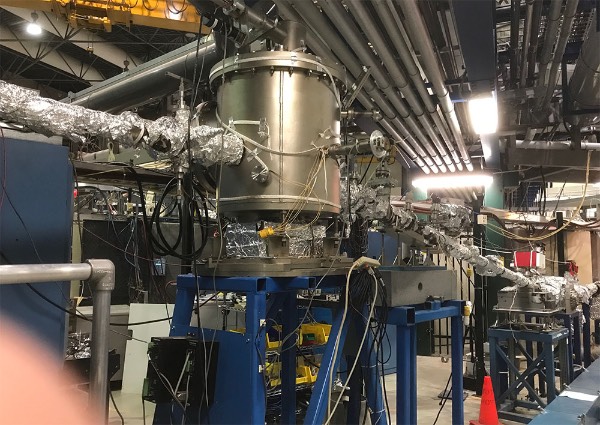

5-m TGM

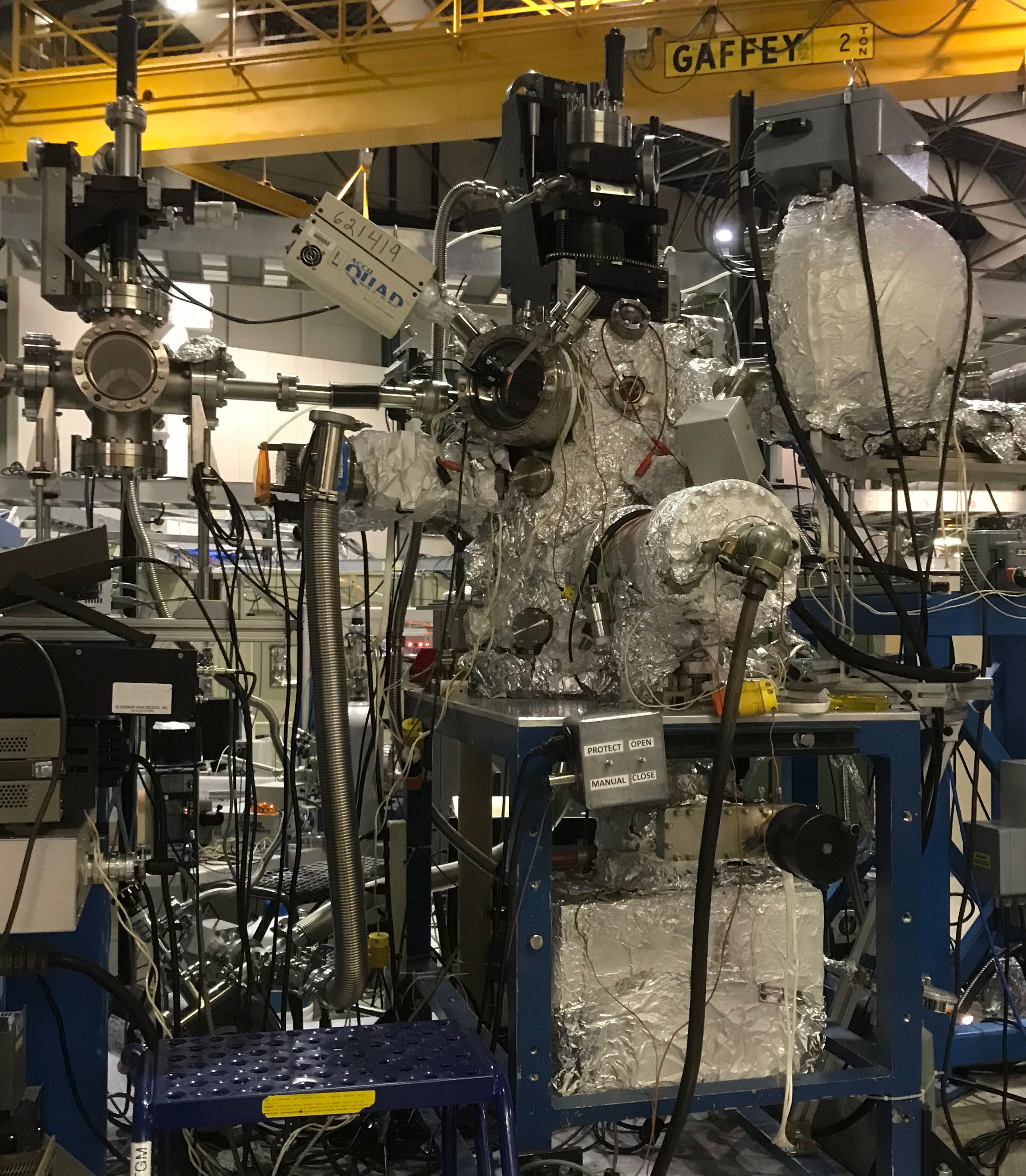

5-m TGM Surface Science End Station

The end station for the 5-m TGM is equipped with

  • Omicron EA-125 photoelectron analyzer for UPS (ultraviolet photoelectron spectroscopy) and XPS (X-ray Photoemission Spectroscopy).
  • LEED (low energy electron diffraction) optics
  • sputtering/annealing and thin-film deposition are also available for surface science applications.
  • conventional laboratory UV and dual-anode X-ray sources are also available
  • Soft X-ray absorption spectroscopy (25 eV – 240 eV) can be performed with a total electron yield method.

All measurements are done under ultra-high-vacuum (UHV) conditions.

Research/Technical Contact: Orhan Kizilkaya
